Equipment and Capacities
Equipment
Lake Erie 1000 ton double acting press.
60” x 72” bed. 38” open height, 10” shut height.
Baldwin 200 ton double acting press.
34” x 24” bed. 16” open height, 0” shut height.
32” open height, 16” shut height w/ draw cushion removed.
Kard 300 ton double acting press.
48” x 36” bed. 36” open height, 12” shut height.
Hysco 500 ton single acting press.
48” x 30” bed. 26” open height, 10” shut height.
Yoder ring form machine. 60” diameter max.
Erco skin stretch machine. 20” x 84” max skin size.
Marshalltown 40 ton OBI punch press.
12” open height, 6” shut height.
Expanders 60” and 36”
Cecostamp drop hammer.
56” x 48” bed. 34” open height, 12” shut height.
Cecostamp drop hammer.
36” x 24” bed. 34” open height, 6” shut height.

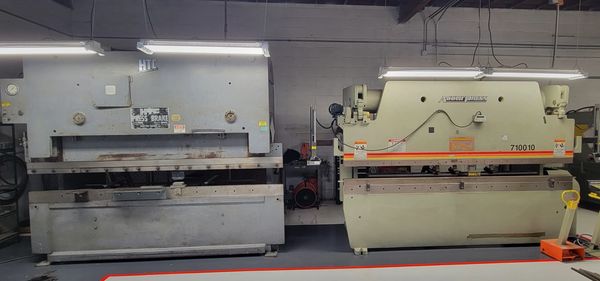

HTC hydraulic press brake. 120” long
Accurpress hydraulic press brake. 120” long
Omax waterjet. 100” x 55” x 8” working area.
Equipment
Haas TM-2 CNC mill. 40” x 16” x 16”
Haas VF-8 CNC mill 64” x 40’ X 30”
Matsuura MC-600VF CNC mill 23” x 16” x 18”
Huppert heat treat oven.
24” x 24” x 40”, 1000 deg max.
Blue M heat treat oven.
18” x 18” x 18”, 1500 deg max.
Pandjiris flatbed seam welder 8’ bed length
JetLine flatbed seam welder. 2’ Bed length
Acme spot welder 75 Kva
Miller Dynasty Tig welders
Miller Millermatic mig welders
Inspection equipment: Romer portable CMM, granite inspection tables, height gauges, micrometers, calipers, pin gauges, hardness testers, various other precision gauges.
Support equipment: Shear up to ¼” x 10’, manual lathes up to 18” dia – 36” between centers, manual mills up to 48” x 24” x 16”, band saws, grinders, vibratory deburr machine, foundry capable of pouring 7000lbs of kirksite, plasma cutter- ¾” capacity.
CAD: CMP uses Solidworks cad software and is capable of importing most cad formats. Parasolid is the preferred neutral format for receiving electronic part data.
